Radius Bend Panels ½", 10 panels

Radius Bend Panels ½", 10 panels

Roth
SKU:
2371000011
Current Stock:
Description

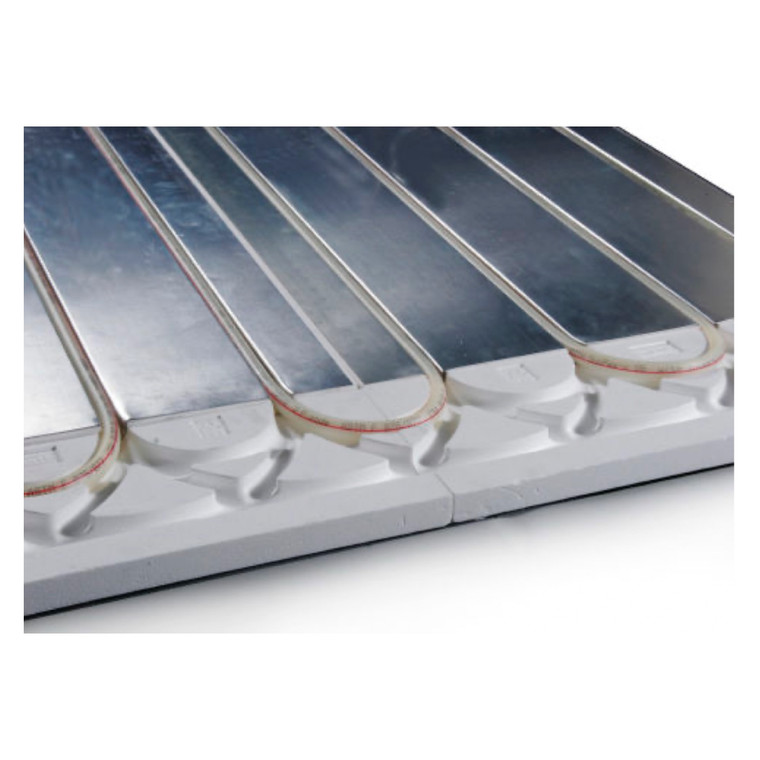

Roth’s versatile, lightweight panel system has insulation on the bottom and the aluminum heat transfer sheet on the top - The way it should be!

Features

  • Can be installed over any new or existing subfloor
  • Used with a variety of floor coverings
  • Ideal for wall and ceiling radiant installations
  • Easily installed over an existing concrete floor
  • Lightweight - Easy to transport and install
  • Two pipe sizes: ⅜” & ½”
  • Quick recovery time allows for nighttime setback
  • Panel height: ⅜” - .75” (19 mm) ½” - 1” (25 mm)
  • Insulation R-values: ⅜” - R -3.7 ½” - R -4.5
  • Tubing centers: 6” (15.24 cm) (Can use 12” center if desired)
  • Aluminum Sheet: 24 ga
  • Insulation: High-density EPS (Expanded Polystyrene)
    60 psi (6.3 kg/cm2)
  • Normal Operating Temperatures: 60° F - 140° F (15° C - 60° C)

Includes

  • (1) Box consists of 10 Radius Panels
