Radiant Panel System For ½” Tubing, 96ft²

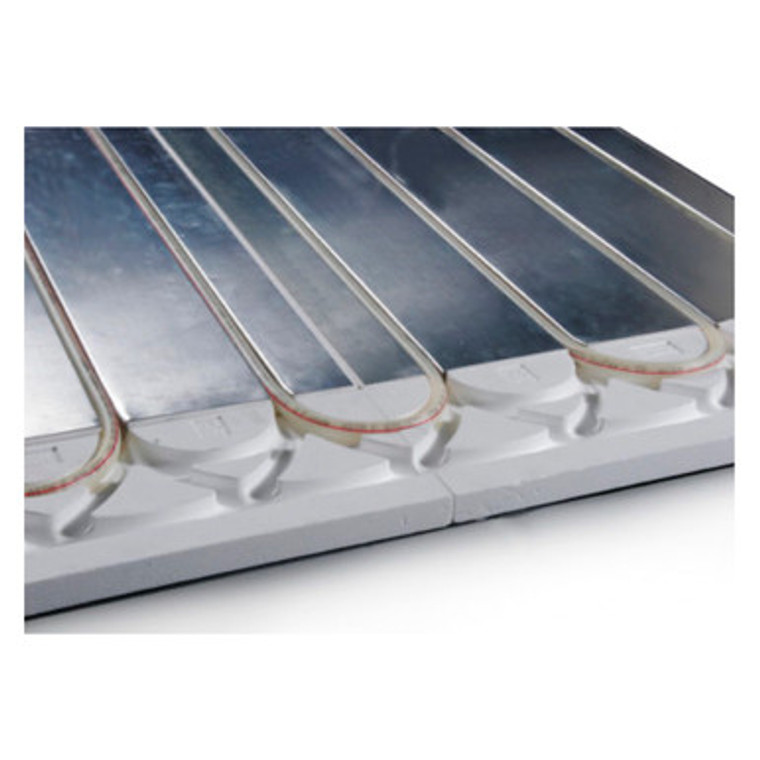

Roth’s versatile, lightweight panel system has insulation on the bottom and the aluminum heat transfer sheet on the top - The way it should be!
Features
- Can be installed over any new or existing subfloor
- Used with a variety of floor coverings
- Ideal for wall and ceiling radiant installations
- Easily installed over an existing concrete floor
- Lightweight - Easy to transport and install
- Two pipe sizes: ⅜” & ½”
- Quick recovery time allows for nighttime setback
- Panel height: ⅜” - .75” (19 mm) ½” - 1” (25 mm)
- Insulation R-values: ⅜” - R -3.7 ½” - R -4.5
- Tubing centers: 6” (15.24 cm) (Can use 12” center if desired)
- Aluminum Sheet: 24 ga
- Insulation: High-density EPS (Expanded Polystyrene)
60 psi (6.3 kg/cm2) - Normal Operating Temperatures: 60° F - 140° F (15° C - 60° C)
Includes
- 1 Box consists of the following parts (96 sq.ft.):
- 10 Master Panels (4’ x 2’)
- 6 Radius Panels (8” x 2’)
- 12 Transition Panels (4” x 2’)
