Honeywell Smart HSI - SV9641M4510

Honeywell Smart HSI - SV9641M4510

Honeywell
SKU:
SV9641M4510

Log in for pricing

Current Stock:
1
Description

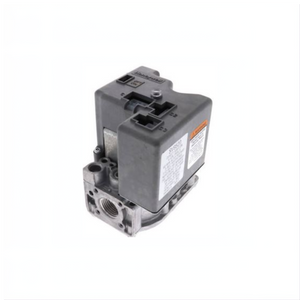

3/4" NPT x 3/4" NPT Intermittent Hot Surface Pilot Ignition SmartValve Control with standard opening and 3.5" wc pressure regulator setting

Includes: (2) 3/4" x 1/2" reducer bushings and an LP conversion kit.

Features



    • These controls communicate directly with an electronic fan timer (ST9160 Electronic Fan Timer for single stage applications; ST9162 Electronic Fan Timer for two-stage applications) in typical forced warm air furnace applications.



    • They also interface with the 208907 Terminal Board, providing compatibility with power stealing thermostats. Or, they directly interface with the appropriate power supplies and a system thermostat for additional appliance applications.



    • When controlled directly by a thermostat, these controls do not provide a postpurge function, because power to the control is removed when the thermostat call for heat ends.



  • The SV9541 and SV9641 Systems are suitable for a wide range of fan-assisted combustion gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, water heaters and commercial cooking appliances.
Replaces:

SV9541M2094

SV9640M3126

SV9640M4116

SV9640M4132

SV9540M2229

SV9540M2245

SV9540M2260

SV9540M2278

SV9640M4124
