Single Zone/Multi-Zone Slim Duct Combinations 24,000btu

Ducted indoor units are ideal indoor comfort options for homes and businesses with silent, energy-saving operations along with flexible installation and airflow. With models ranging in capacity from 12,000 to 36,000 BTU/h and adjustable air volume controls, ducted units bring out the best of a ductless system with an elegant, concealed design. Ducted indoor units can be mixed and matched with other multi-zone indoor units for zone control of multiple rooms/areas.

Features

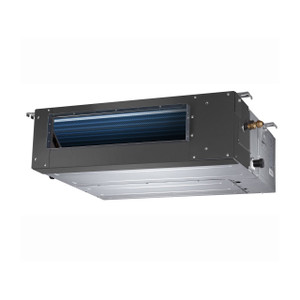

• Slim Duct Unit

  • When it’s cold outside it’s warm inside. Eco-Air Slim Duct indoor units can be used as a primary heat source. When coupled with a Hyper Heat outdoor unit, Heat Pump operation is possible down to -30°C. The Slim Duct units are factory ready for a third-party auxiliary electric heat module if needed.
• Built-in Drain Pump
  • The Slim Duct unit is equipped with a factory-installed condensate lift pump capable of lifting the water up to 29″ to a gravity drain pipe.
• Fresh Air Intake
  • The air handler can mix fresh air from the outside with room existing air to achieve optimal indoor air quality (IAQ).
• Auto Defrost
  • This feature prevents the indoor coil from freezing and maintains dehumidification even in low-temperature conditions.
• Auto Restart Function
  • If the air conditioner shuts off unexpectedly due to a power outage, it will restart with the previous settings when the power resumes.
• Refrigerant Leak Detection
  • In the unlikely event of a refrigerant leak, the indoor unit’s wall controller will display an “EC” error code and automatically stop the system from operating. This protects the compressor from high-temperature damage due to a low refrigerant condition.
• Compatibility
  • Eco-Air Slim Duct units are compatible with select Single Zone and all Multi-Zone outdoor units including Hyper Heat models.
• Outdoor Units
  • Available in Standard Inverter & Hyper Heat Models
• Compressor Heating Belt
  • A compressor Heating Belt is standard for easier start-ups and compressor protection during cold weather.
• Base Pan Heater
  • Base Pan Heater is standard to ensure no ice build-up inside the outdoor unit and proper drainage occurs during cold weather and when the defrost cycle is initiated.
• Low Ambient Cooling
  • Eco-Air units can provide cooling at low outdoor temperatures. This is especially useful when year-round cooling is required.

Downloads

• Brochure
• Submittal
