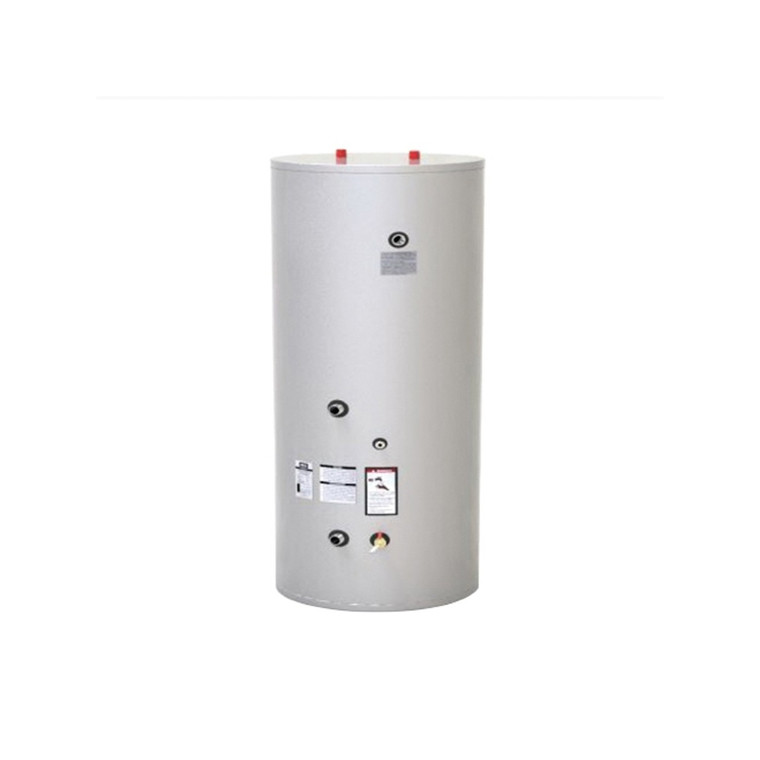

InterStor IWT Indirect Water Heater 50 Gallon

InterStor IWT Indirect Water Heater 50 Gallon

IBC
SKU:
IWT-50
Current Stock:
Description

Features

  • Durable metal jacket
  • Top hot and cold connections on residential units
  • Front heating connections for a flexible installation
  • 2” of polyurethane foam insulation
  • Oversized low pressure drop coil
  • Ships with a 10KΩ sensor
  • Large smooth wall heating coils in counterflow configuration
  • Thermal well for sensor or aquastat
  • 444 stainless steel tank shell and 316L stainless steel heating coil
  • Factory-installed drain valve with cap
  • Stainless Steel Cold Inlet Dip Tube

Specifications

  • Max. Operating Pressure: 150psi
  • Height: 57"
  • Diameter: 22"
  • Operation at outlet water temperature: 180 ° F
  • Gross tank volume: 53 USG
  • New tank volume: 50.7 USG
  • Continous Draw: 217 Gal/Hr
  • Boiler Output Required: 140,000 Btu/Hr
  • Minimum Flow Rate: 14 Gpm

Warranties

  • 1 year limited parts warranty
  • 10 years limited tank and heating coil warranty, or limited lifetime with registration for residential use
  • 5 years limited tank and heating coil warranty for commercial use

Downloads
