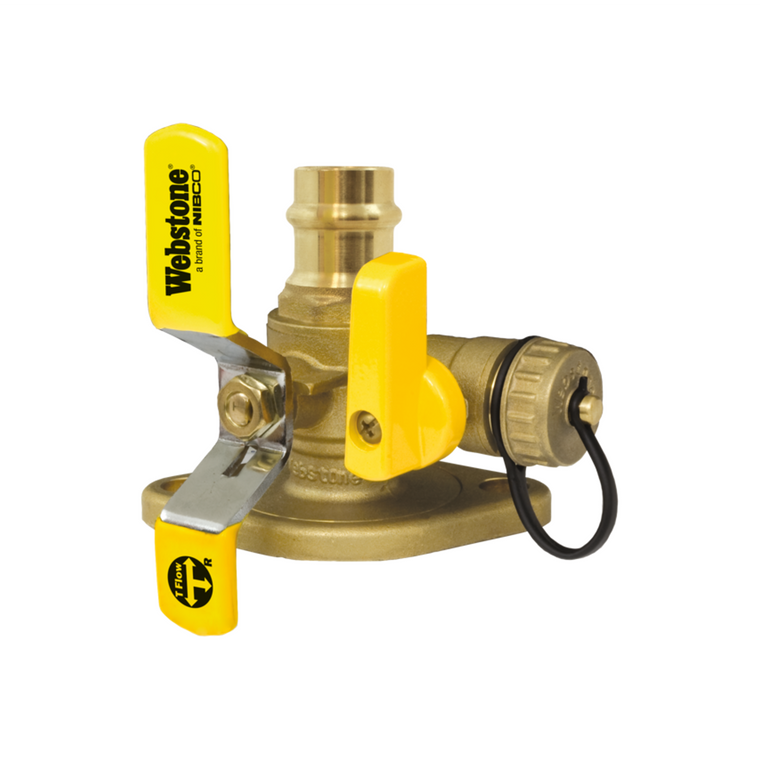

1½" Isolator w/Rotating Flange w/Drain

1½" Isolator w/Rotating Flange w/Drain

Webstone
SKU:
WE-81416HV
Current Stock:
Description

Designed for residential, commercial or industrial use with water only. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. HV models fit both standard and high velocity pumps.

Features

  • Easily Isolates the Pump for Replacement
  • Prevents Electrolysis and Eliminates Galvanic Corrosion
  • Rotating Flange is Secured by a Snug-Fit Snap-Ring that
  • Provides Greater Control Over Positioning During Installation
  • Flange Features a Conical Inlet to Minimize Turbulence
  • Multi-Function Drain Makes the Isolator the Only Valve That
  • Drains From Either Side of the Pump
  • Fits Virtually Any Standard Circulator Pump
  • Replaces 8 Components
  • Eliminates 7 Leak Paths
  • Ball valve with integral spring check saves labor, space, and leak paths
  • Adjustable Packing Gland
  • Certified to NSF/ANSI 61 & 372
  • NSF/ANSI 14
  • 250 psi / 250 deg F max
  • 600 WOG
  • Type: High Velocity
  • Connection Type: Press
  • Connection Size: 1½"
  • Features:
    • Bleeder
    • Detachable Rotating Flange
