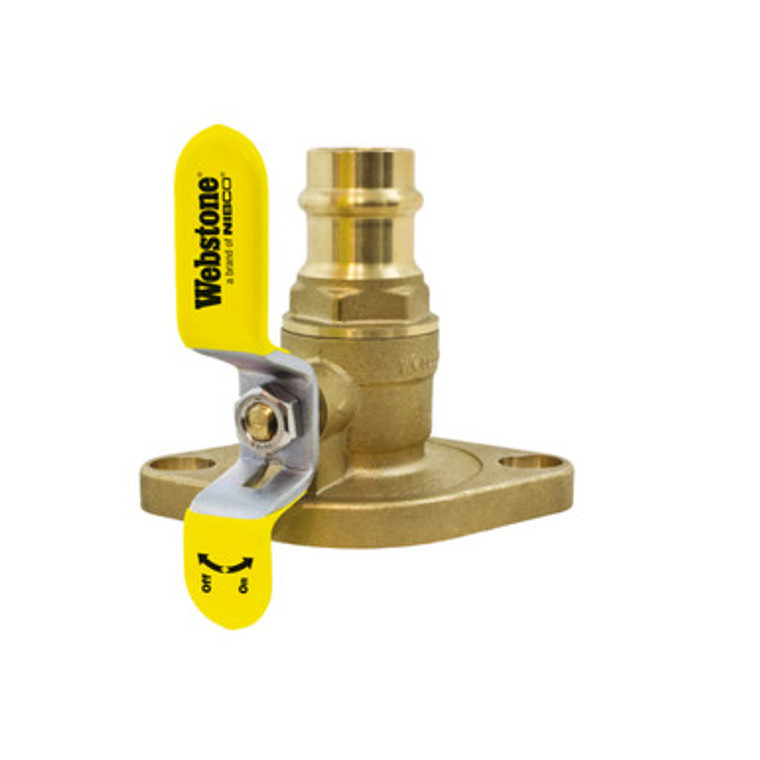

1½" Press x Pump Flange, Full Port Brass Ball Valve

The Isolator Uni-Flange Ball Valve connects to the circulator pump at one end and the system piping at the other. It allows the user to isolate the pump for service, allowing virtually no air into the system upon replacement.

Its innovative design combines multiple components into a single forged brass body that saves time, labor, and space. The Isolator has revolutionized the installation of circulator pumps and has evolved into the largest flanged ball valve program in the industry today, featuring patented technology with further patents pending.

Designed for use with water, oil, or glycol mix in residential or commercial plumbing and heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

Features

• Full Port Forged Brass Uni-Flange Ball Valves w/ Detachable Rotating Flange
• Adjustable Packing Gland, Nuts & Bolts
• Press x Rotating Flange
• 250 PSI / 250°F Max
• 600 WOG
• ISO 9001
• Material: Brass
• Connection Size: 1½"
• Connection Type: Press
• Type: High Velocity
• Features: Detachable Rotating Flange

Downloads

• Submittal Sheet
