Argosy Buffer Tank 40 Gallon

Argosy Buffer Tank 40 Gallon

FLEXCON Industries
SKU:
BUF40
Current Stock:
Description

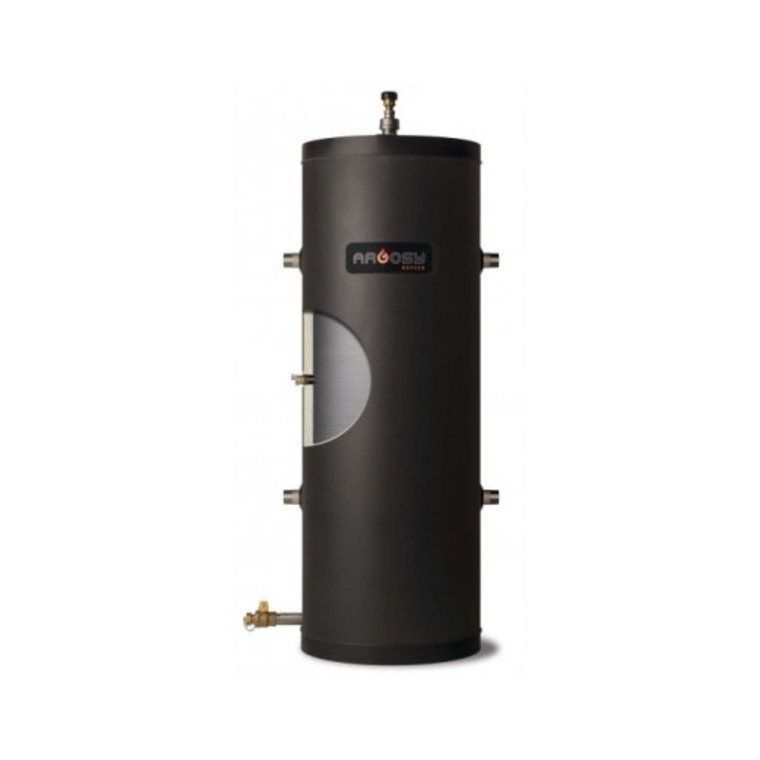

Flexcon's Argosy series buffer tanks are designed for geothermal heat pumps, hydronic heating systems, chilled water, and as a de-superheater for domestic hot water. The Argosy buffer tank is the only pressurized composite buffer tank on the market. Lightweight, won't rust and with an R-value of 15, will keep the water hot or cold while increasing system efficiency by reducing short cycling.

Features

  • Outer Shell: Lightweight, high strength, non-corrosive plastic
  • Insulation: Lightweight, injected, High-R closed cell foam. Temperature loss < 1o per hour
  • Inner Shell: High-strength, fiberglass-wound, epoxy resin coated
  • Water Chamber: Copolymer polypropylene lined
  • Internal Base: High-strength injection molded plastic
  • Connections: Stainless steel
  • Testing: High pressure, submersed leak test

Dimensions

  • Volume: 40
  • Diameter: 21”
  • Height: 56”
  • System Connections: 1¼”
  • Thermal Well: Yes
  • Weight: 50lbs
