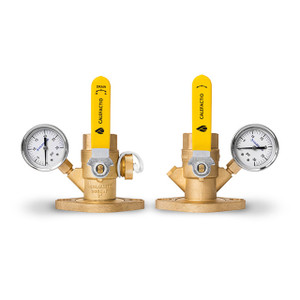

Dielectric Pump Flange Valve 1½" NPT

Dielectric Pump Flange Valve 1½" NPT

Calefactio
SKU:
CAL-PF112N
Current Stock:
Description

In addition to being the only pump flange valve including a pressure gauge port that allows you to quickly monitor your system, it also has a dielectric isolation sleeve in the rotating flange.
The pressure gauge allows you to check the system pressure at any time and react quickly if the system is not within its normal pressure range. The gauge will give precise readings between 0 and 100 PSI (0-690 kPa).
The dielectric isolation sleeve in the rotating flange prevents dissimilar metal corrosion (galvanic corrosion).

Specifications

  • Connections: 1½" NPT
  • Full port brass ball valve
  • Ball valve isolation for circulating pumps
  • Dielectric rotating flange
  • 2 gauge ports
  • 500 CWP

Includes

  • (1) flange valve without drain
  • (1) gasket
  • (2) nuts and 2 bolts
