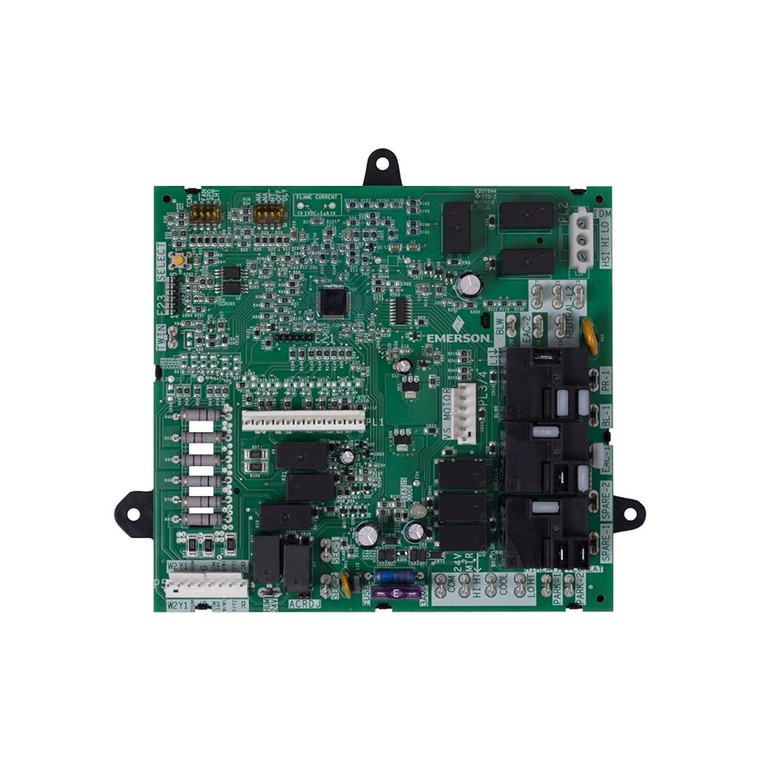

Carrier and ICP Two-Stage HSI Integrated Furnace Control Kit, Carrier

Carrier and ICP Two-Stage HSI Integrated Furnace Control Kit, Carrier

White Rodgers
SKU:
21V51D-751
Current Stock:
Description

Two-stage HSI integrated furnace control kit for many Carrier and ICP equipment brands with PSC, variable speed, and ECMx blowers configured via dipswitch selection.

Specifications

  • Input Voltage: 18 to 30 VAC, 60 Hz
  • Current: 0.8 amp @ 25 VAC
  • Min current to insure flame detection: 0.25 microamperes DC*
  • Max current for non-detection: 0.1 microampere DC
  • Max allowable leakage resistance: 150 M ohms * Measuring with a DC voltmeter (1VDC = 1 microampere)
  • Operating Temperature Range: -40° to 175°F (-40° to 80°C)
  • Mounting: Plastic tray
  • Humidity Range: 5 to 95% relative humidity (non-condensing)
  • Gases Approved: Natural, Manufactured, Mixed, Liquefied Petroleum and LP Gas Air Mixtures
