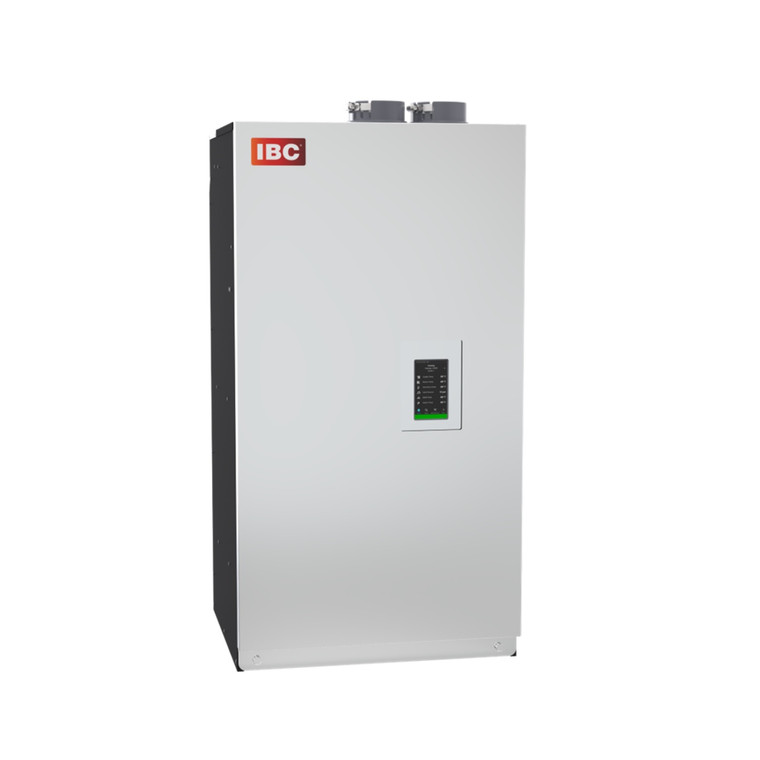

Combining IBC’s proven condensing technology with a revolutionary intuitive V10-control and compact Stainless Steel heat exchanger design, the CX™ Combi high-efficiency boiler comes with the same quality, control features and efficiency you expect from the SL™ and VX™ with the addition of built-in tankless DHW production for all of your home heat and hot water needs.
Features
- Express Setup – Program your boiler in seconds
- Remote Monitoring & Diagnostics
- Easy USB programmability
- Instant Visibility – Built-in warnings on the controller
- Real-time monitoring of DHW temperature
- Intuitive Alert System with detailed error messages
- Visible flame current data for troubleshooting
- Load combining
- Cascade up to 4 units
- Maximum Performance
- 95% A.F.U.E. – Reduce operating costs and heat your home faster.
- Full boiler capacity available for both
- DHW and space heating
- State-of-the-art, ASME, 439 grade, SS firetube HX
- Brazed plate HX for DHW production
- Turndown ratio 10:1 means you have the power to heat your home during the coldest weather, yet reduce short cycling when the weather is mild.
- North American built. All CXTM models are designed, engineered and assembled in Canada
- More Built-In Features
- Built-in 4-zone pump or valve control
- In addition to the primary control – 5 pumps total
- Replaces the need for external zone control.
- Built-in factory-wired primary pump.
- Built-in combi block for DHW supply and ease of service from front of unit
- MFZ Technology: Patented moisture management system. Protects and ensures long life for all boiler components
- Built-in outdoor reset control of water temperature
- Built-in CSA/UL approved low water cut-off and manual reset high limit.
- Easy To Install And Service
- Universal parts. With only one fan and one controller, servicing all CXTM models just got a lot easier.
- All combi block components can be easily replaced individually.
- PVC/CPVC/PPs approved.
- Vent lengths up to 50 ft. with 2” and 170 ft. with 3”
- Easy to inspect HX featuring a condensate draining system that cleans as it heats
