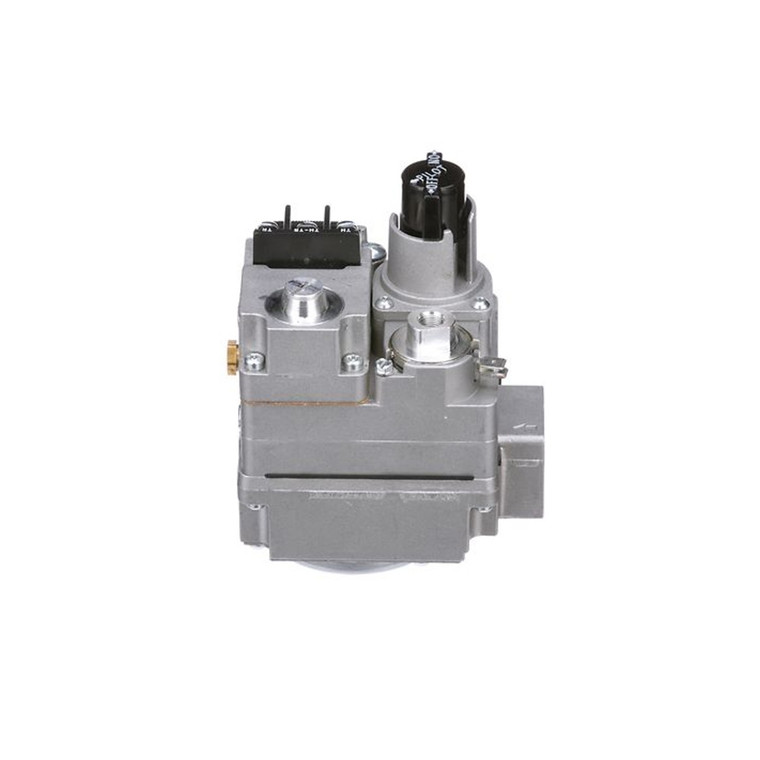

Gas Valve, 24VAC, ¾", Slow Opening W/Reducers
White RodgersWrite a Review
White Rodgers
Gas Valve, 24VAC, ¾", Slow Opening W/Reducers
The multi-function gas controls combine into a single package the functions of 3 position gas cock, main gas valve, pressure regulatorand 100% shut-off automatic pilot. The pilot gas outlet accepts a 1⁄4” pilot line connection.
This model features a slow opening main valve that provides a softer ignition and E.C.O. connections.
To permit replacement of a variety of valve sizes, some models are furnished with two reducer bushings (two 3⁄4” to 1⁄2”). Also included is an E.C.O. jumper wire that allows this valve to be used on an installation without electrical cut off device.
Features
- Line Interrupter styles use standard 30 mV Thermocouples.
- Straight through design
- Inlet/outlet reducer bushings
- Mounting position upright, or 0° to 90°From upright in any direction.
- CSA approved
