HSI Single-Stage Furnace Kit

HSI Single-Stage Furnace Kit

White Rodgers
SKU:
50A55-743

Log in for pricing

Width:
6.00 (in)
Height:
10.00 (in)
Depth:
1.00 (in)
Current Stock:
1
Description

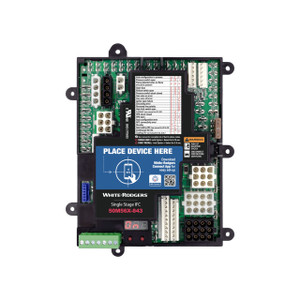

The 50A55-743 is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan.

Signals interpreted during continual surveillance of the thermostat and flame sensing element initiate automatic ignition of the burner, sensing of the flame, and system shut-off during normal operation.

Features

  • 120 VAC Ignitor Output
  • 120 VAC Humidifier Output
  • 120 VAC Electronic Air Cleaner Output
  • 120 VAC 2-Speed PSC Circulator Output
  • Fuse Protection - 5 Amp
  • Furnace Status LED
  • Heat Fan OFF Delay (Dipswitch Selectable)
  • Y, W, R, G, C, TWIN Terminals
