Manometer Dual Port w/ Pressure Switch Tester

The Dual Port Manometer has the ranges to measure gas pressure and the resolution needed to measure static pressure. Ideal for HVACR field service technicians, the SDMN6 can determine if the gas pressure coming into the house or out of the regulator are correct. The SDMN6 measures gas pressure up to 60″ water column (WC) with a resolution of 0.1″ WC. In addition, the unit measures both positive and negative pressure, which is used for measurement on vacuum control lines. The unit will take differential pressure readings and display the difference between P1 and P2 at all times in the lower right corner of the easy-to-read LCD. Four different measurement scales can be used: inches of water column, millimeters of water column, mBar, and PSI.

Features

• Gas, static, and differential pressure
• Test pressure switches
• Easily calibrate any adjustable pressure switch
• Great for diagnosing furnace performance

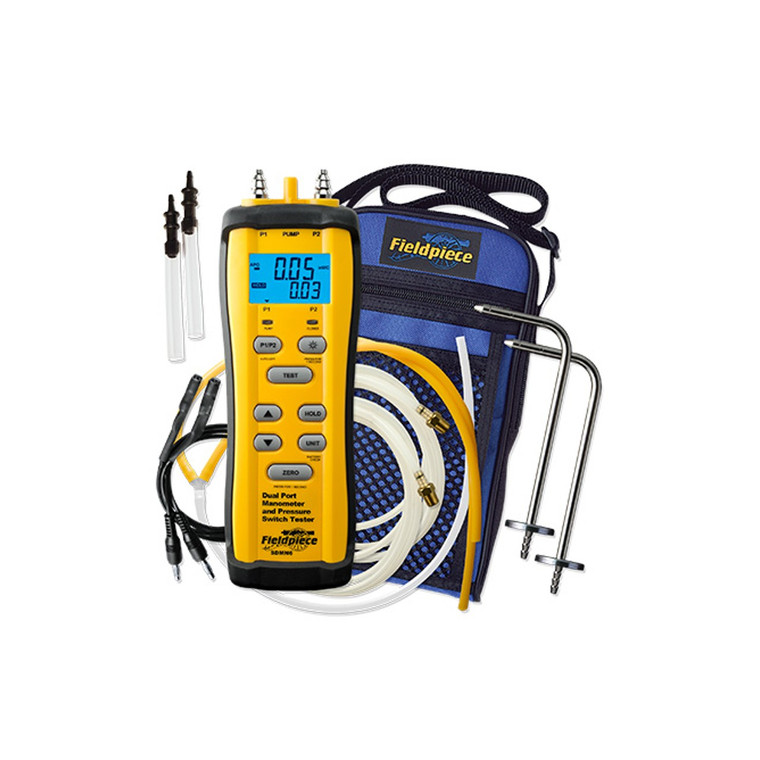

Includes:

• SDMN6 – Dual Port Manometer and Pressure Switch Tester
• ANC1 – Four Pocket Carrying Case
• ASP2s – Static Pressure Probes
• RMA316 – Pressure Tubes
• Quick Connect Leads
• Hoses and Y-splitter
• Hoses with Brass Screw Fittings

Downloads

• Sell Sheet
• Operators Manual
