Navien Primary Manifold Kit for NFC-H and NCB-H

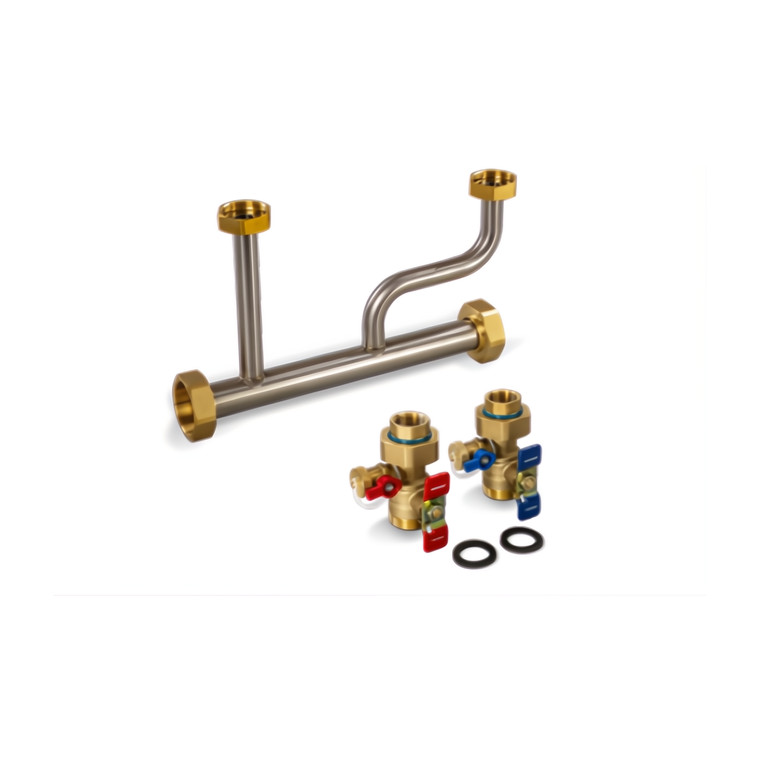

Name: Navien Primary Manifold Kit for NFC-H and NCB-H
Brand: Navien
SKU: 30026576C
Availability: OutOfStock

Navien

SKU:

30026576C

Current Stock:

Out of stock

Out of Stock

The NCB-H and NFC-H Series Primary Manifold is approved for use with Navien Combi-Boilers ONLY.

Compatible with all NCB-H and NFC-H Series boiler models: NCB-190/060H, NCB-190/080H, NCB-240/110H, NCB-240/130H, NCB-250/150H NFC-175H, NFC-200H

Compact design that is ideal for hydronic and radiant space heatng applications.

Package comes pre-assembled in order to reduce labor time and cost for installatons while maximizing system efficiency without the need to fabricate a custom manifold.

The SUPPLY and RETURN connections on the manifold attach directly onto the fittings located at the bottom of the boiler unit.

This manifold kit contains the following features:

1“ FNPT dielectric unions for boiler SUPPLY and RETURN.
1-1/2” FNPT dielectric adapters for heatng SUPPLY and RETURN piping.
Included PRV/Air Vent Adapter.- Adapter from threaded connection to clipped connection.
Set of 1" Isolation Valves with 3/8" drain connections and rubber gaskets.
Male plug when LWCO is not used.
Made of Stainless Steel material.
