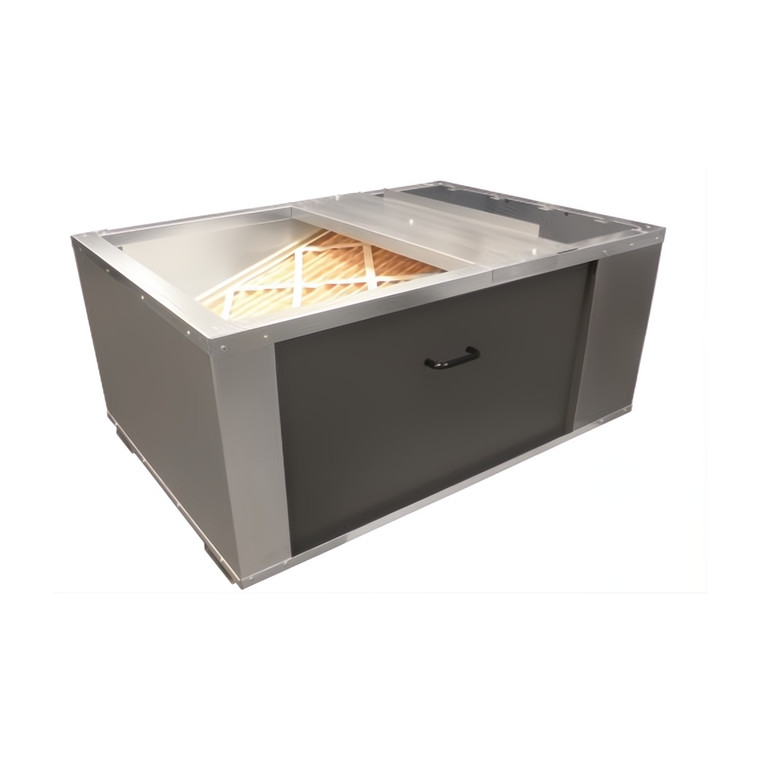

Perfect Platform 2240 Media Air Cleaner

Description

The Perfect-Platform Series Media Air Cleaners by Five Seasons offer the most well-built, sleek designed and easiest to use galvanized sheet metal filter housings on the market, for residential and light commercial use.
Space saving design for vertical installations, keeps furnace off floor allowing a cleaner, more
professional installation. Eliminates the possibility of dust, pet hair, insects, rodents, water or sewer
backup from entering the furnace. Allows furnace to work at maximum efficiency and extends life of furnace by providing even air flow distribution across bottom. Especially ideal for high efficiency furnaces, where side returns require more installation time, and are inefficient compared
to a bottom return.

Specifications

• High efficiency MERV 11 Media Filter is an extra deep, 5¼ inch filter which contains more media
  material than other filters on the market. More surface area means more collection area,
  longer filter life and lower static pressure. Filter lasts up to one year.
• Two, pull-out doors with handle allow filter access from either side.
• Adjustable inlet duct opening replaces need for field forming transition, significantly reducing
  installation time.
• Heavy 22 gauge galvanized sheet metal has been die cut for smooth edges, allowing for a smoother
  installation.
• Solid cabinet is riveted for sturdiness and long life.
• Return Openings: Width - 10" or 12" ,  Length - 20"
• Supply Openings: Width - 20"-22" or 16.5" - 22" , Length - 20"
