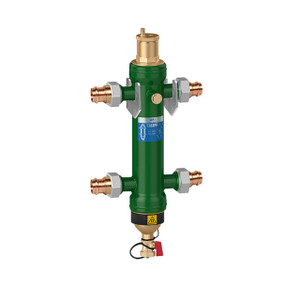

SEP4 4-in1 Magnetic Hydraulic Separator 1¼" Press

SEP4 4-in1 Magnetic Hydraulic Separator 1¼" Press

Caleffi
SKU:
549567A
Current Stock:
Description

Description

  • Combination air, dirt, hydraulic and magnetic separators.
  • Epoxy resin-coated steel body.
  • HDPE internal coalescing element, removable for cleaning.
  • Includes mounting bracket.
  • Thermowell tap: ½" straight female

Specifications

  • Max working pressure: 150 psi
  • Working temp range: 32˚ - 212˚F
  • Particle separation capacity: to 5 μm (0.2 mil)
  • Ferrous impurities separation efficiency: 100%
  • Air separation efficiency: 100% to microbubble level.
  • Complete with union connections.
