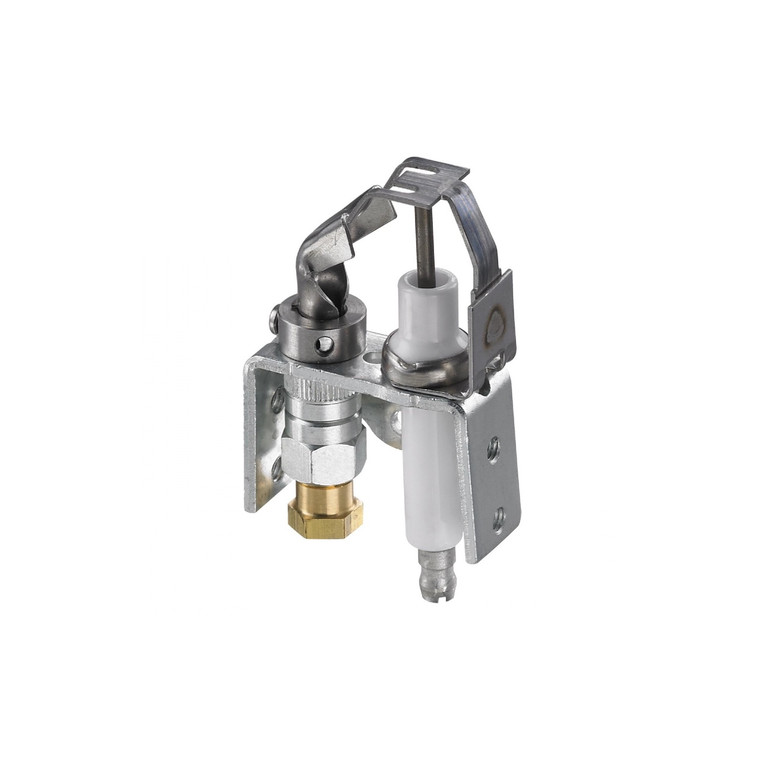

Universal Intermittent Pilot Burner

Replacing a pilot burner often leaves you with two options—replace the pilot with like-for-like parts or clean the existing pilot—and neither option is ideal. You either take time away from other jobs by ordering and replacement and returning later to install it, or you fruitlessly attempt to clean the faulty pilot. Honeywell Home intermittent pilot burners from Resideo were designed to fit almost every system on the market, meaning you can carry one part and be confident that it will work for nearly any faulty pilot you take on. With adjustable mounting options, flexible orientations, and the accessories needed for replacement, you can fix more with less and offer your customers a reliable flame from a trusted name.

Features

• Includes pilot burner with bracket
• Ceramic-insulated Kanthal flame rod and spark igniter, and ground strap
• Single tip style
• Three position adjustable hood to provide desired flame pattern
• Natural and LP orifices
• Used with the S86, S860, S8610, or S8670 in intermittent pilot systems

Downloads

• Brochure
• Installation Instructions
