WIFI Geothermal Controller, 4 stages

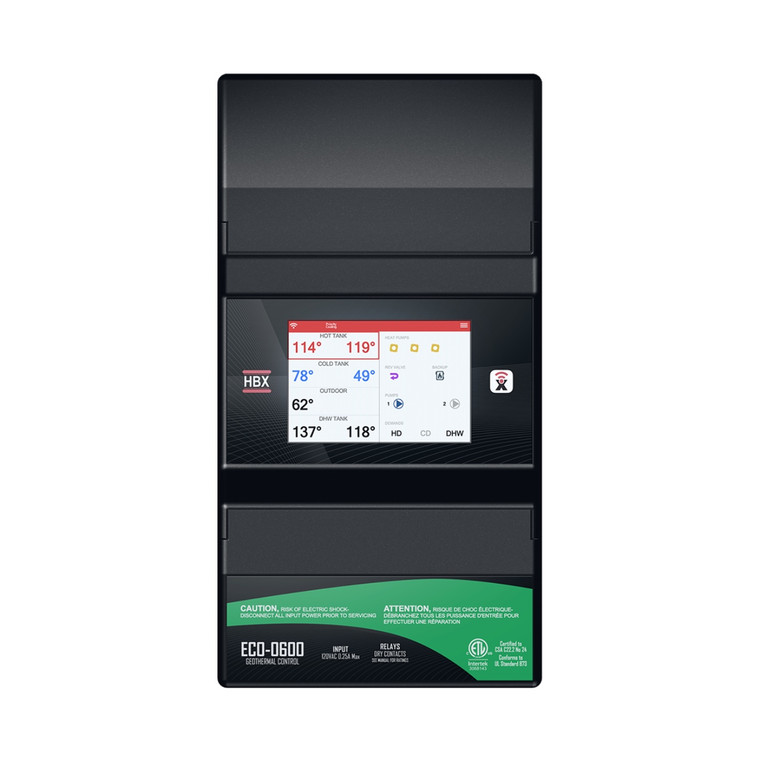

The ECO-0600 is designed to be a stand–alone outdoor reset control device. The purpose and function of the ECO-0600 is to provide control for geothermal applications with the ability to control equipment in a 2-pipe, single or dual tank, hydronic heating or cooling system.

The ECO-0600 can control up to four (4) heat pump stages (air-to-water or water-water) or chillers and a reversing valve with outdoor temperature reset control.

This powerful control can control a backup heat source (boiler) while operating three (4) heat pump stages. The backup heat source can be brought on with a few different options based on outdoor or tank temperatures. The control can manage single tank or dual tank applications with separate hot and cold tanks. The control also features DHW (domestic hot water) control with any application.

Remote Access Anytime, Anywhere.
Used in conjunction with the free HBX SensorlinxTM mobile app, users can control their geothermal system remotely from there smartphone or tablet devices with the ability to adjust heat pump and backup parameters, monitor tank temperatures, equipment operation status and receive alarm notifications.

Features

• App for Android or Apple Smartphone/tablet device for remote access with alarm email notification
• Control up to four (4) stages plus backup
• Rotate heat pumps based on time and cycles
• Single or Dual tank setup
• Wi-Fi enabled for remote access via the SensorLinx mobile app
• DHW control
• Control system, cold/tank pumps with post purge and exercising options
• Operate reversing valve and/or 3 way diverting valve
• Outdoor temperature reset with WWSD/CWSD options
• Auto changeover
• Priority setup

Downloads

• Sell Sheet
• Manual
• Submittal Sheet
