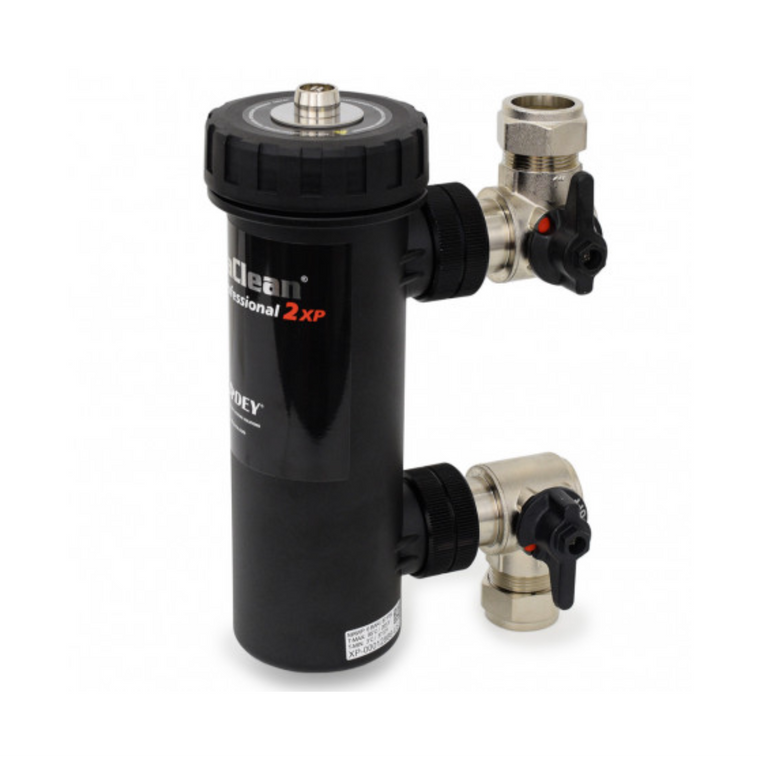

MagnaClean Pro2XP 1" Sweat, 1¼" NPT

MagnaClean Professional2XP has a larger filter capacity to remove greater volumes of magnetite and with 1” compression / 1 ¼” NPT connections, is the perfect solution for larger residential hydronic heating systems with 150,000 - 300,000 BTU boiler ranges.

Features

X-treme protection for large residential and light commercial hydronic heating systems

• X-treme performance, large-capacity filter
• Rapid in-line installation, featuring in-line inlet and outlet ports with bi-directional flow
• Designed for larger heating systems (1" copper and 1-1/4" black iron pipes)
• Integral flow-diverters ensure 360° distribution for uniform flow around magnets, maximizing sludge capture
• Powerful permanent magnet
• Also captures non-magnetic debris
• Rotating filter connections allow customizable installation options
• Low-profile drain valve and built-in air vent for easier maintenance
• Tool-free valve connection, designed to prevent cross treading
• Improved high-performance seals and bore size for greater flow and reliability
• Bi-directional flow – either port can be designated as entry port
• Easy dosing of ADEY® treatment products via canister
• Full-flow valves for minimal pressure drop

Specifications

• Product Type: Dirt Eliminator
• Size: 1", 3/4"
• Connection Type: FNPT X FNPT
• Connection Method: Threaded
• Type: Magnetic

Downloads

• Brochure
• Install Instructions
