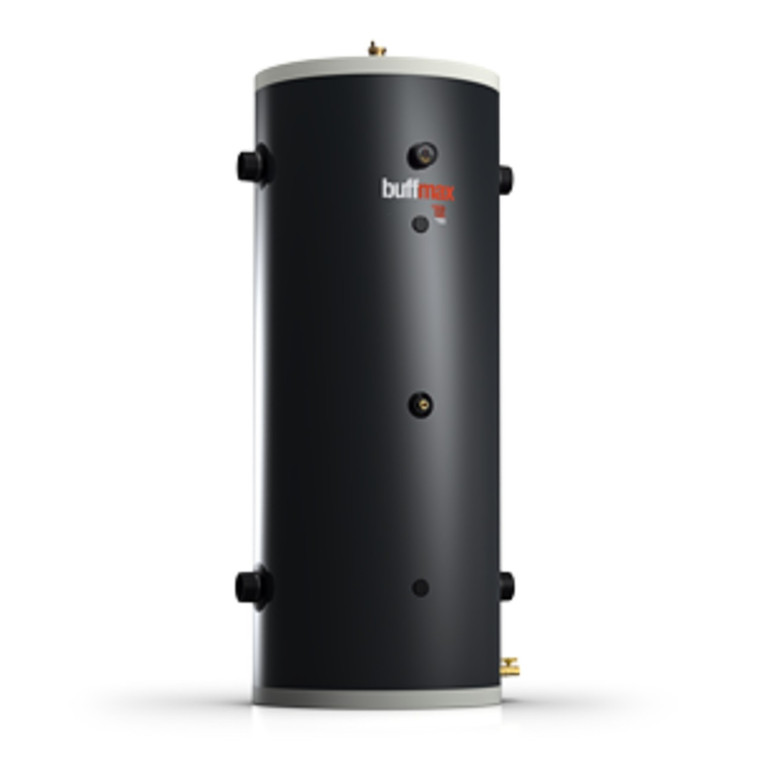

BuffMax 30 Gallon Buffer Tank
Thermo 2000Write a Review
Thermo 2000
BuffMax 30 Gallon Buffer Tank
The BuffMax from Thermo 2000 is a 3-in-1 solution that acts as a buffer tank, storage tank and hydraulic separator. It is recommended to optimize the performance of several different types of heating systems: low-mass boilers, biomass systems, geothermal and heat pump applications, multi-zone systems, and solar energy systems. The BuffMax is synonymous with versatility. The BuffMax’s tank comes with a 10-year warranty. Its mechanical parts come with a 2-year warranty.
Features
- The tank has a total of 4 openings, 2 on each side. The tanks use NPTM connectors with the following standard sizes:
- BUFFMAX 30: 1½’’
- ½’’ automatic air vent with a shut-off valve for easy replacement.
- 2½’’ diameter temperature and pressure indicator on the front
- Immersion well included
- Three ½’’ connections for the location of the well or to enable wells to be added
- 2’’ HFC-free polyurethane insulation limiting heat loss to ½°F per hour
- ¾’’ drain valve located at the lowest point of the tank
- The tank has adjustable legs
