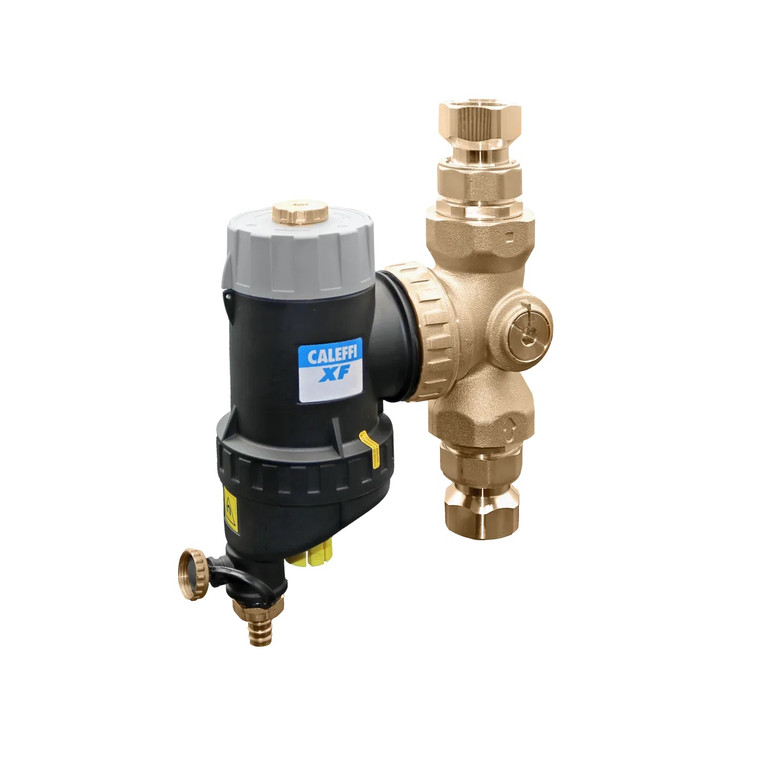

XF Magnetic Strainer 1" NPT

XF Magnetic Strainer 1" NPT

Caleffi
SKU:
577660A

Log in for pricing

Width:
3.50 (in)
Height:
10.50 (in)
Depth:
7.00 (in)
Current Stock:
2
Description

Xtra Filtration magnetic dirt separator (NPT). Perfect for heat pump and condensing boiler applications. The unique internal brush mechanism cleans the filter for simple and efficient "clean hands" purging.

High-efficiency ferrous and non-ferrous impurity separation.

Complete with:

  • First-pass debris filter with an internal cleaning brush mechanism.
  • 160 μm mesh filter to remove fine particle impurities.
  • Rotating collar which permits vertical or horizontal placement.
  • 50% bypass feature (on 1 ¼" and 1 ½" sizes) to reduce pressure drop.

Specifications

  • Maximum working pressure: 45 psi
  • Medium temperature range: 32 – 195 °F
  • Maximum percentage of glycol: 30 %
  • Medium: water, glycol solutions
