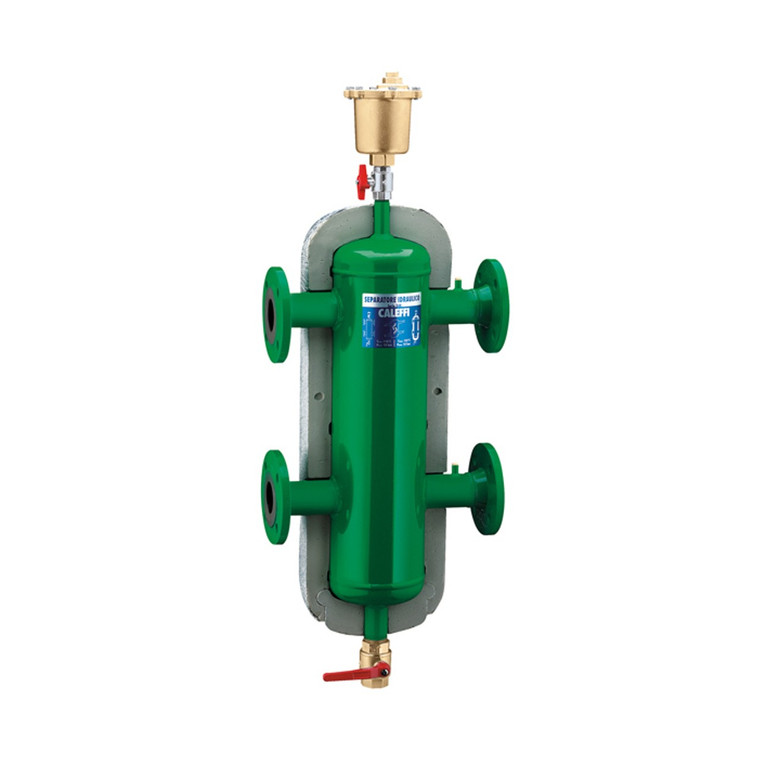

Hydro Separator 3" ANSI flange, ASME & CRN

Hydro Separator 3" ANSI flange, ASME & CRN

Caleffi
SKU:
NA548082A
Current Stock:
Description

Description

  • Hydraulic separator.
  • Epoxy resin-coated steel body.
  • With pre-formed insulation.

Complete with:
→ Automatic air vent (code 501502A)
→ Shut-off valve (code NA39589)
→ Drain valve (code NA39588)

ANSI 150 flange connections.

Specifications

  • Max working pressure: 150 psi
  • Vessel temp range: 32˚ - 220˚F
  • Vessel temp range without insulation: 32˚ - 270˚F
  • Baffle plates for all sizes: 304SST

    "NA" code prefix indicates ASME tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors.

Codes with the denotation of CRN indicate that the item is accepted and registered by the Canadian Registration Number (as defined by CSA B51 4.3).
