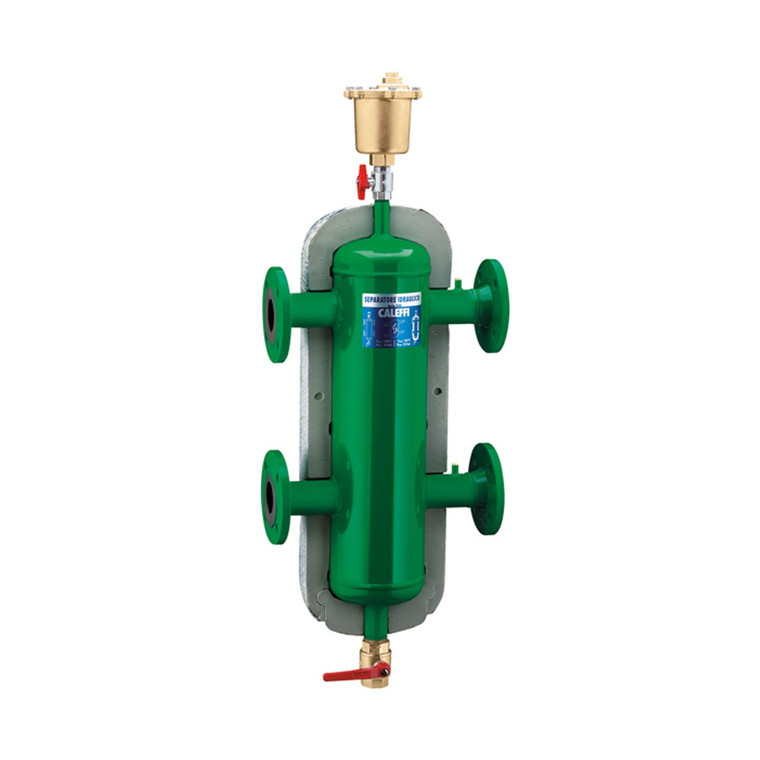

Hydro Separator 3" Flanged, 124 gpm

Hydro Separator 3" Flanged, 124 gpm

Caleffi
SKU:
548082A
Current Stock:
Description

Description

  • Hydraulic separator.
  • Epoxy resin-coated steel body.
  • Pre-formed insulation on 2" - 4" sizes.
  • 300 Series stainless steel internal baffle.

Complete with:
→ Automatic air vent (code 501502A)
→ Shut-off valve (code NA39589)
→ Drain valve (code NA39588)

Specifications

  • ANSI 150 flange connections.
  • Max working pressure: 150 psi
  • Vessel temp range: 32˚ - 220˚F
  • Vessel temp range without insulation: 32˚ - 270˚F
  • Baffle plates for all sizes: 304SST
