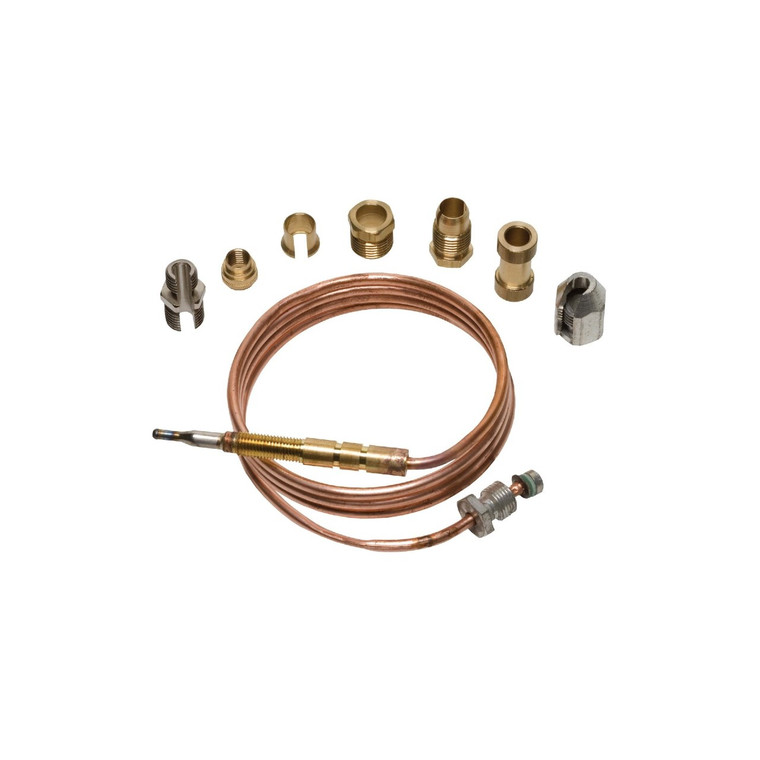

Quick Drop Out Thermocouple w/600mm leads

Quick Drop Out Thermocouple w/600mm leads

resideo
SKU:
Q370A1014
Current Stock:
Description

The Q370A thermocouples sense the pilot flame on gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 millivolts.

Features

  • The Q370 has various adapters for different mounting possibilities in various pilot burners.

Specifications

  • Application: Thermocouple
  • Lead Wire Length: 35.5", 900 mm
  • Cold Junction Temperature Rating (Max): 415 °C
  • Hot Junction Temperature Rating (Max): 650 °C ± 50 °C
  • Drop Out Time: 30 sec
  • Operating Voltage: 30 mV
  • Resistance (Max): 0.031 ohms
  • Resistance (Min): 0.025 ohms
