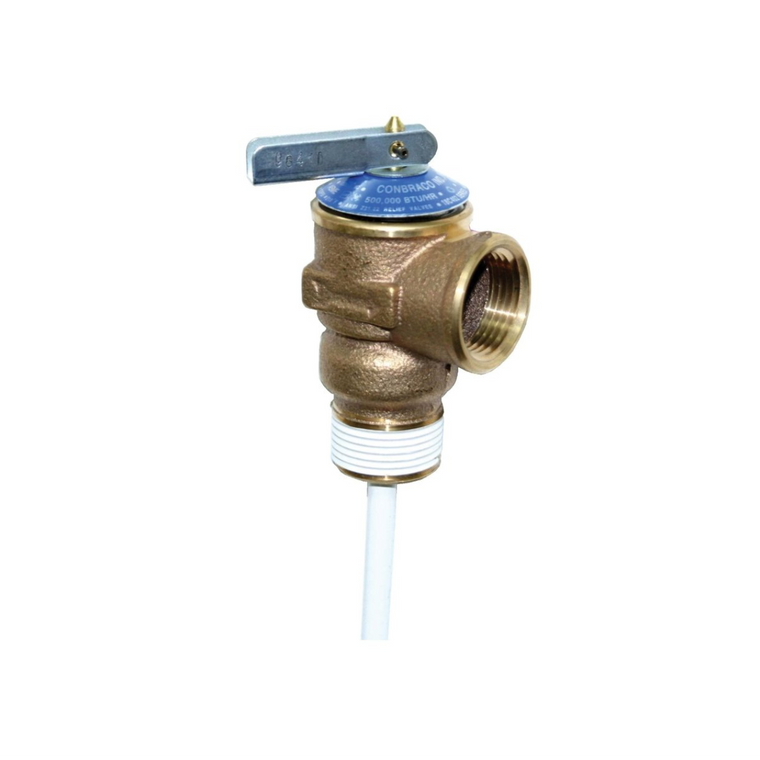

T & P Relief Valve ¾” x ¾" MxF, 150 PSI
ApolloWrite a Review
Apollo
T & P Relief Valve ¾” x ¾" MxF, 150 PSI
Feature unique non-metallic coating which protects the element against galvanic and electromechanical corrosion by isolating it from the heated water. This coating is electrostatically applied for uniform coverage, then thermobonded, resulting in optimum adhesion for extended service life. CSA design certified at all settings to ANSI Z21.22. ASME Section IV rated at 125 psig and 150 psig settings for 3/4” NPT only.
Features
- Meets HUD/FHA requirements
- Cast bronze body, SS spring
- Rated 210°F maximum
- CRN #0G0053.6C Registered in all Canadian Provinces and Territories
- ASME capacity certified for ¾” NPT only
Specs
- Size: ¾" x ¾"
- Pressure Set Point: 150 psi
- Probe Length: 3"
- Capacity (BTU): 105000
- Max Temp (F): 210°F
- Material: Bronze
- Shank Length: Standard
- Connection Type: MPT x FPT
- Inlet Type: MNPT
- Outlet Type: FNPT
