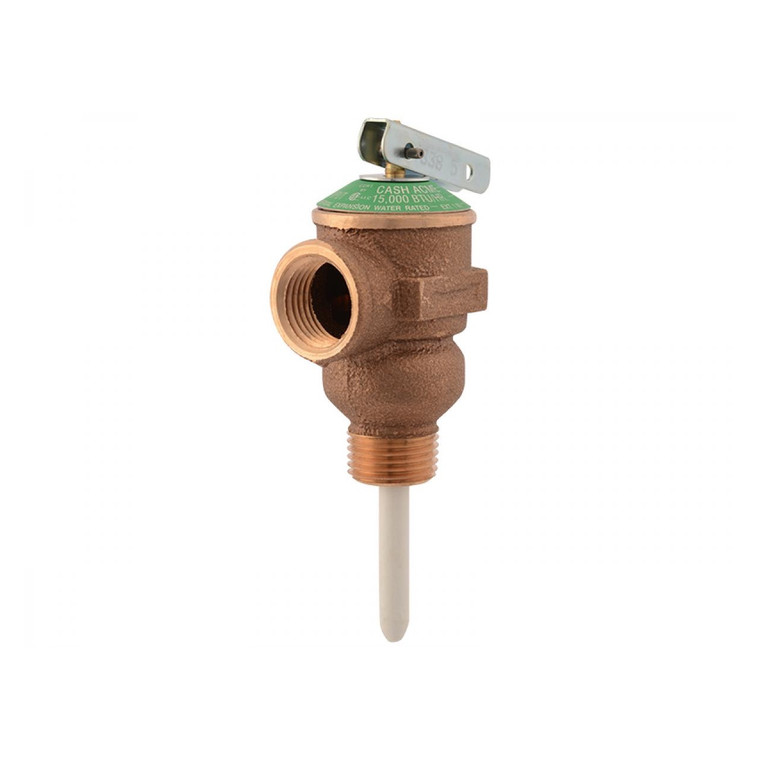

¾" NCLX-5 T&P Relief Valve

The NCLX T&P Relief Valve incorporates an inert thermal element coating that provides effective isolation from mineral deposits (liming) and galvanic corrosion. The NCLX features include a cast bronze body, brass and stainless steel internal parts, silicone seat disc and stainless steel spring. The NCLX comes standard with a test lever. The valve is completely automatic and reseats after either temperature or pressure relief. The NCLX is available with male inlets and female outlets and several options in shank and element lengths. Every valve is tested for performance before shipping to specify and install with confidence!

Cash Acme NCLX Combination Temperature and Pressure Relief Valves are designed for the protection of water heaters and storage tanks and are ideal for all domestic water heater applications.

Features

• Completely automatic and reseats after temperature or pressure relief. Ideal for all domestic water heater applications
• Incorporates an inert thermal element coating - Provides effective isolation from mineral deposits (liming) and galvanic corrosion
• 4" Element
• Approvals - The NCLX valves are certified to ANSI Z21.22 / CSA 4.4 and capacity certified to ASME Boiler Code Section IV (1/2" sizes ANSI / CSA listed only).

Application
Temperature and pressure protection for domestic water heaters and storage tanks.

Specifications

• Size: ¾"
• Connection Type: Threaded
• Inlet Type: MNPT
• Outlet Type: FNPT
• Max Temp (F): 210°F
• Pressure Set Point: 150 psi
