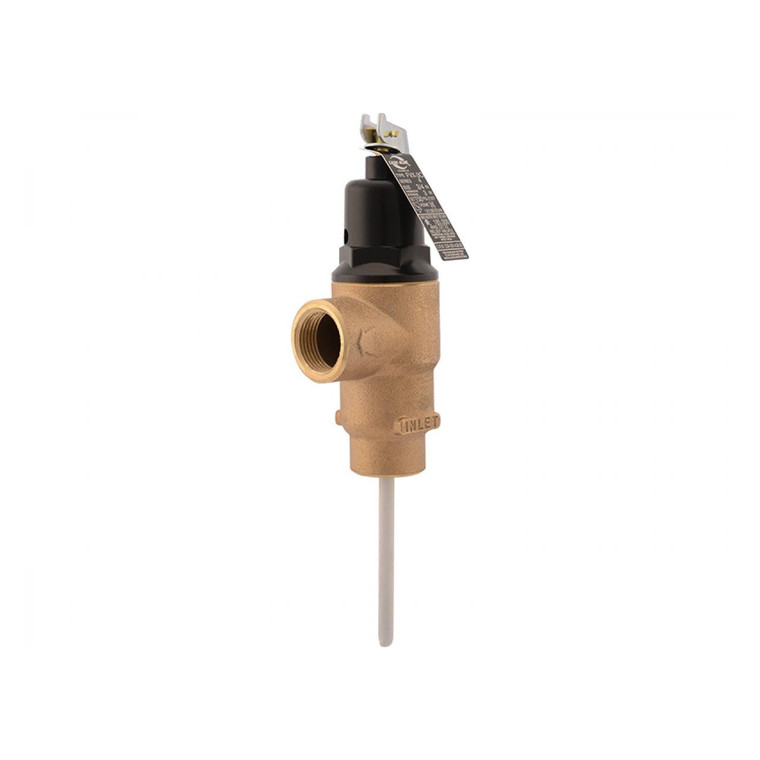

1" FVMX-5C Commercial T&P Relief Valve, Male Inlet, LF

The Cash Acme FVX Series combination temperature and pressure relief valves are designed to offer high-capacity protection for domestic and commercial water heating devices. The Cash Acme FVX Series is fully automatic, and the valves reseat after either temperature or pressure relief.

All Cash Acme FVX Series Valves through 1-¼" have coated thermal elements to protect against corrosion and mineral build-up. The coating also isolates the copper from galvanic action within the heater.

Features

• Offers high capacity protection for domestic and commercial hot water heating devices: Handles more volume with just one relief valve
• Completely automatic: The valves reseat after either temperature or pressure relief
• The larger series valves are well suited for commercial applications: Restaurants, hospitals and laundries are no problem!
• Listed by CSA and ASME: Inspector-friendly, peace of mind

Specifications

• Size: 1"
• Connection Type: Threaded
• Inlet Type: MNPT
• Outlet Type: FNPT
• Max Temp (F): 210°F
• Pressure Range: 75 to 150 psi

Downloads

• Spec Sheet
