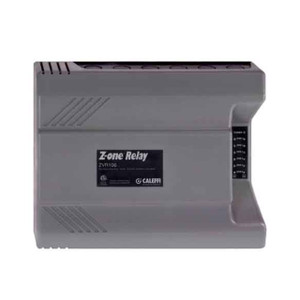

Z-one 4 Zone valve control Relay

The ZVR series is a multi-zone valve relay and boiler operating control for multiple-zone hydronic heating systems. The ZVR series interfaces with low-voltage thermostats or any other low-voltage controllers having a switching action. The ZVR series controls up to 3, 4, 5 or 6 zones, depending on the model selected. In addition, a system circulator pump and secondary pump is turned on whenever any zone calls for heat. LED indicators provide functional status and easy system troubleshooting. The ZVR series is a perfect match with Caleffi’s Z-one™ motorized zone valves.

Features

• Compatible with low voltage 2, 3, or 4-wire thermostats
• R, W, C and TT Comm dual labeling at thermostat terminals
• Z-oneLink™ unlimited zone expansion to ZVR and ZSR series
• Selectable priority with 1 hour time-out feature
• System and secondary pump status selectable during ZONE 1 demand
• Circulator will start only after the zone valve end switch is closed
• Dry contact for ZONE 1 (DHW), capable of switching line voltage
• Dry contact AUX for signalling a variable speed self-regulated pump or other controls
• Large terminal connections
• High Capacity 40 VA Transformer standard for 3 and 4 zone models-expandable to 80 VA, and 80 VA standard for the 6 zone model
• Automatic resettable low voltage fuse
• Controls system pump, secondary pump, and priority pump
• Front LED Lights
• 100% Factory tested with 3-year warranty, ETL Listed / CSA Certified
