Z-one Single zone relay pump

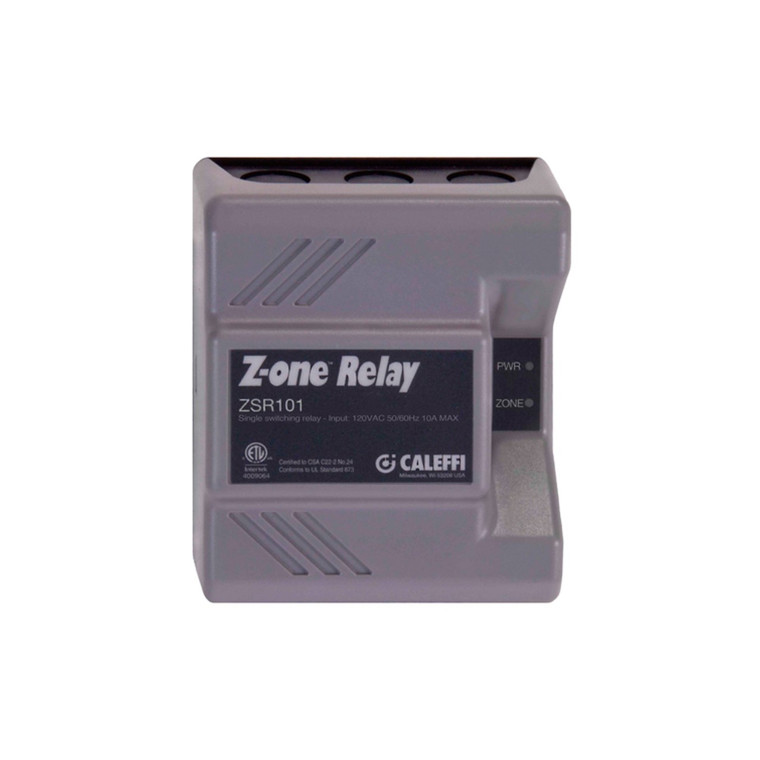

The ZSR101 single zone switching relay is operated by low voltage thermostats. The ZSR101 single zone switching relay incorporates Power In, Relay 1 and Relay 2 connection terminals to provide a convenient and cost effective way to control a circulator and a boiler operating control in a single zone hydronic heating system. The ZSR101 single zone switching relay saves hours in installation time and provides a clean and professional installation.

Features

• Compatible with 2, 3 and 4-wire thermostats or other low voltage controllers with switching action
• 120 VAC input
• Heavy duty, sealed, DPDT, fuse-protected relay (with spare fuse)
• Two outputs (Relay 1 and Relay 2) for operating 120 VAC pump with boiler enabled, or two devices without boiler enable
• 5 A capacity for each relay - 10 A total
• Convenient R,W,C and T,T,COM dual labelling at thermostat terminals
• Rear knock-outs for mounting onto 4” x 4” junction box
• High capacity 6 VA transformer
• Automatic resettable fuse on 24 V circuit
• Simplified wiring with pre-installed jumper
• Large screw terminals. On-board ground terminals
• Front panel LED indicator light for functional status
• 100% factory tested with 3-year warranty
• ETL certified to CSA and UL standards
