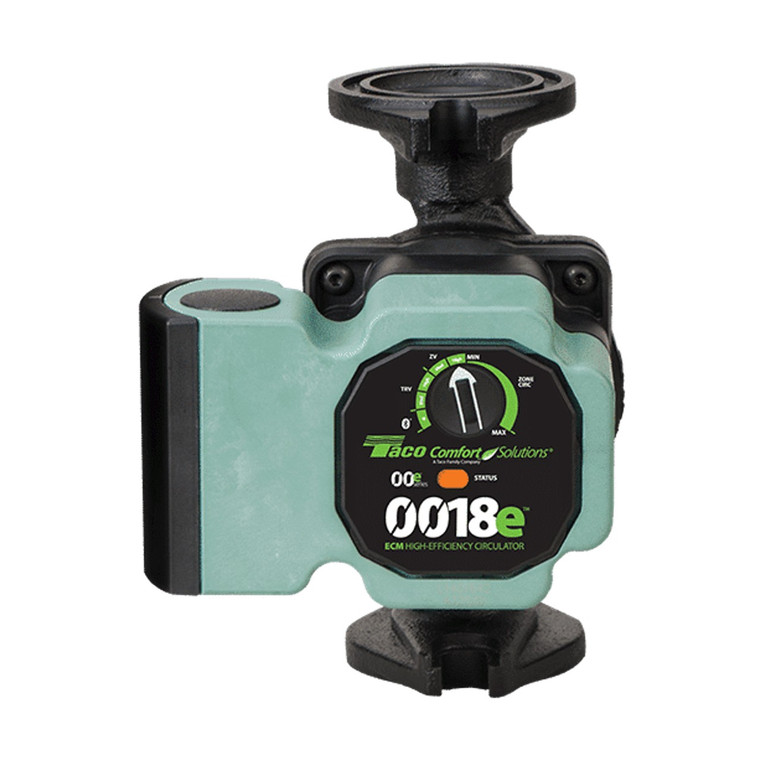

0018e ECM Cast Iron High-Efficiency Circulator

0018e ECM Cast Iron High-Efficiency Circulator

Taco
SKU:
0018e-2F4
Current Stock:
Description

The 0018e is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Operating modes include infinitely variable fixed speed, constant pressure, proportional pressure or self-adjusting TacoAdapt™. Stainless Steel models for use in potable water systems for domestic water recirculation. The 0018e is not suitable for chilled water systems.

Specifications

  • Max. Shut-off Head: 18 feet
  • Max. Flow: 16 gpm
  • Max. Operating Pressure:
    • Cast Iron: 125 psi (8.6 bar)
  • Max. Water Temp: 230°F (110°C)
  • Min. Water Temp: 36°F (2°C)
  • Electrical specifications:
  • Voltage: 120V, 60 Hz
  • Single phase
  • Max. Operating Power: 44W
  • Max. AMP Rating: 0.54
  • Cast iron casing suitable for closed loop systems only
  • Not suitable for chilled water
  • Taco circulator pumps are for indoor use only
  • Acceptable for use with water or maximum of 50% water/glycol solution
