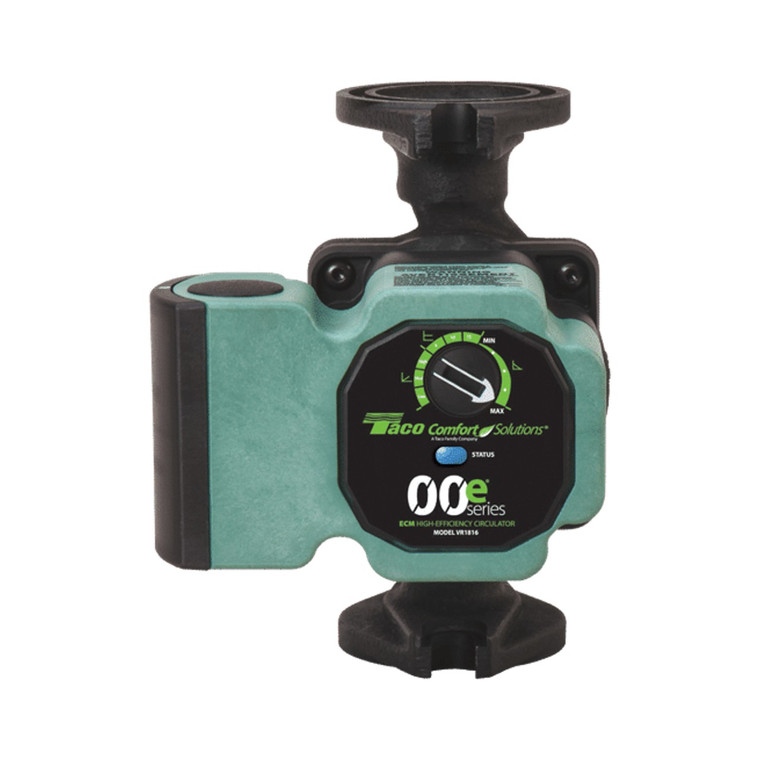

VR1816 ECM High-Efficiency Circulator

VR1816 ECM High-Efficiency Circulator

Taco
SKU:
VR1816-HY1-4C2A00
Current Stock:
Description

The VR1816 circulator is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Operating modes include infinitely variable fixed speed to fine tune any zone, self-adjusting constant pressure for zone valve applications and self-adjusting proportional pressure for panel radiators with thermostatic radiator valves. The VR1816 is not suitable forchilled water or open loop potable water applications.

Specifications

  • Maximum Shut-off Head: 18 feet
  • Maximum Flow: 16 gpm
  • Maximum Operating Pressure: 125 psi (8.6 bar)
  • Maximum Water Temp: 230°F (110°C)
  • Minimum Water Temp: 36°F (2°C)
  • Electrical specifications:
    • Voltage: 120V, 60 Hz
    • Single phase
    • Operating Power: 4W - 44W
    • Max. AMP Rating: 0.54
  • Equipped with a cast iron casing and should be used for closed loop systems only
  • Taco circulator pumps are for indoor use only
  • Acceptable for use with water or maximum of 50% water/glycol solution
