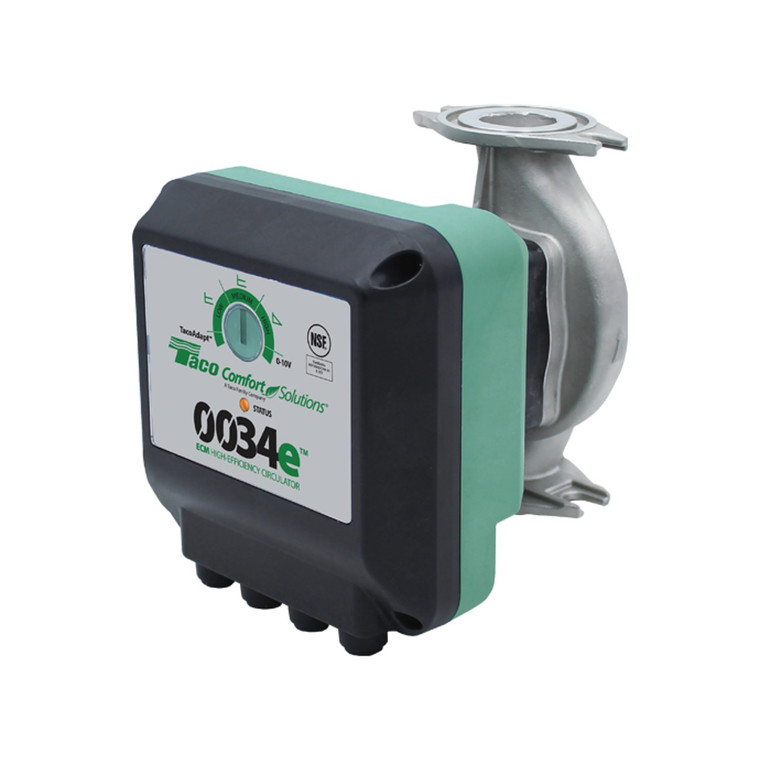

0034e ECM Stainless Steel High-Efficiency Circulator

The 0034e is a high-performance, variable-speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With 5 easy settings, its variable speed performance curves are equivalent to the Taco 009, 0010, 0011, 0012, 0012 3-Speed, 0013, 0013 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0034e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators.

Stainless Steel Model: Open loop, potable water systems

Specifications

• Maximum Shut-off Head: 34 feet
• Maximum Flow: 50 gpm
• Maximum Operating Pressure: 150 psi (10.3 bar)
• Maximum Water Temp: 230°F (110°C)
• Minimum Water Temp: 14°F (-10°C)
• Electrical specifications:
• Voltage: 115V/208/230, 50/60 Hz
• Single phase
• Operating Power Range: 10 - 170W
• Max. AMP Rating: 1.48 (115V) - 0.70 (230V)
• Equipped with a Cast Iron or Stainless Steel casing
• Suitable for chilled water systems
• Stainless Steel model suitable for open loop potable water systems
• Taco circulators are for indoor use only
• Acceptable for use with water or a maximum of 50% water/glycol solution
• 6.5” Flange to Flange dimension retrofits most circulators in its class
