006e3 ECM Cast Iron High-Efficiency Hot Water Circulator
TacoWrite a Review
Taco

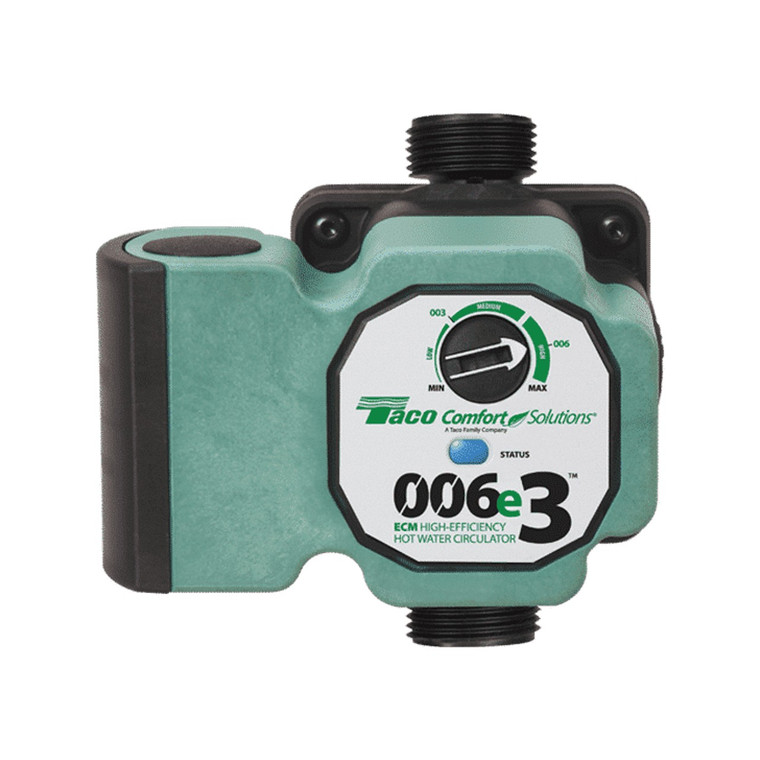

006e3 ECM Cast Iron High-Efficiency Hot Water Circulator
The 006e3 is a high-efficiency wet rotor circulator with an ECM permanent magnet motor. It is designed for use in open-loop domestic hot water recirculation or closed hydronic systems. A simple 3-setting speed dial allows you to match circulator performance to system requirements.
Specifications
- Maximum Shut-off Head: 13 feet
- Maximum Flow: 11 gpm
- Maximum Operating Pressure: 150 psi (10 bar)
- Maximum Water Temp: 203°F (95°C)
- Minimum Water Temp: 36°F (2°C)
- Electrical Specifications:
- Voltage: 120V, 60 Hz Single phase
- Max. Operating Power: 44W
- Max. AMP Rating: 0.54
- Equipped with a composite casing designed for open-loop potable water systems and closed hydronic systems
- Not suitable for chilled water
- Taco circulator pumps are for indoor use only
- Acceptable for use with water or maximum of 50% water/glycol solution in closed hydronic systems
