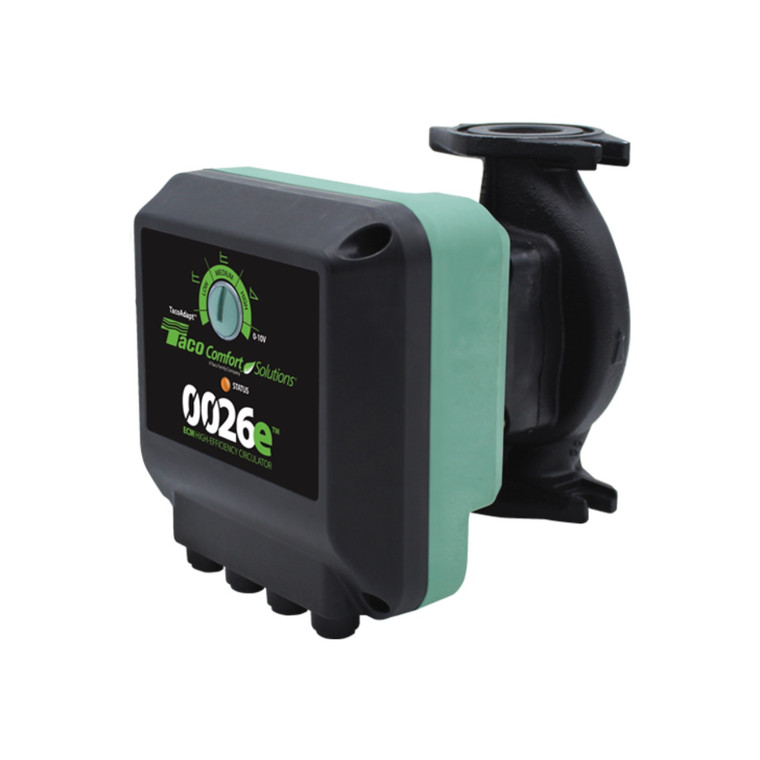

0026e-F2 Cast iron ECM circulator

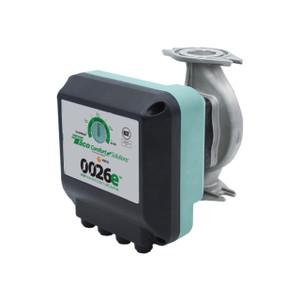

The 0026e ™ is a high-performance, variable-speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With 5 easy settings, its variable speed performance curves are equivalent to the Taco 0010, 0011, 0012, 0012 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0026e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. With a maximum of 26 feet of head and 44 gpm, it is available in either Cast Iron or NSF certified Stainless Steel.

Features

• Replaces all single-speed and 3-speed circulators in its class
• Rotatable control cover to simplify installation
• BIO Barrier® protects the pump from system contaminants
• SureStart® automatic unblocking and air purging mode
• Use with a Taco ZVC Zone Valve Control or SR Switching
• Relay for ON/OFF operation
• Nut-grabber feature on flanges for easier fit-up
• Dual electrical knockouts and a removable quick-connect terminal strip for easy wiring
• Double insulated
• Whisper quiet operation

Specifications

• Maximum operating pressure: 150 psi (10.3 bar)
• Maximum fluid temperature: 230°F (110 ̊C)
• Minimum fluid temperature: 14°F (-10 ̊C)
• Electrical specifications:
  • Voltage: 115/208/230V, 50/60 Hz, single phase
  • Maximum operating power: 120W
  • Maximum amp rating: 1.0 (115V) / .50 (230V)
• Equipped with a cast iron or stainless steel casing
• Stainless Steel model suitable for open loop potable water systems
• Taco circulators are for indoor use only
• Acceptable for use with water or a maximum of 50% water/glycol solution

Downloads

• Catalogue
• Submittal Data
