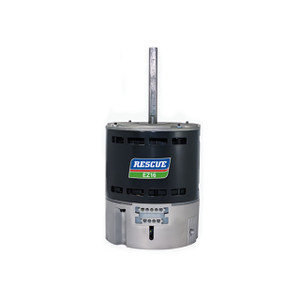

5860 Rescue ECM Motor

5860 Rescue ECM Motor

US Motors
SKU:
5860

Log in for pricing

Current Stock:
1
Description

Universal ECM 16-pin variable speed replacement, compatible with all 2.0, 2.3, EON motors., Connects the same as OEM., Field tunable with included EZI interface, adjustable airflow at point of installation., Multi-HP trim function to increase flexibility., EZ interface remotely mountable for ease of access., Replaces thousands of OEM models., *Interface is included with motors.

Truck stock
• Universal replacement
• Field tunable with EZI (included)
• Replaces thousands of OEM models
• EZ Interface (EZI)
• Direct drop-in
• Connects the same as OEM
• Adjustable airflow at point of installation
• Multi-HP trim function to increase flexibility
• Remote mount for ease of access
• Universally compatible with all 2.0, 2.3, EON motors and Nidec 16X4W

Specifications

  • Inputs: 24Vac or PWM
  • Rotation: CCW or CW (24Vac) / auto-rotation (PWM)
  • Hertz: 60 & 50Hz
  • Operation mode: constant torque
  • NEMA 48 frame
  • Open Air Over (OAO) enclosure
  • Belly-band mounting
  • Up to 82% efficiency
